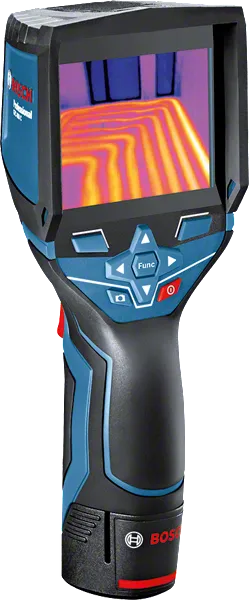

Bosch GTC 400 C Professional Thermo Camera Order number 0.601.083.150

Bosch GTC 400 C Professional Thermo Camera Order number 0.601.083.150

etoolstore.in

Rs. 65,800.00
-Liquid error (snippets/price line 55): divided by 0% Rs. 65,800.00
Sale Sold out

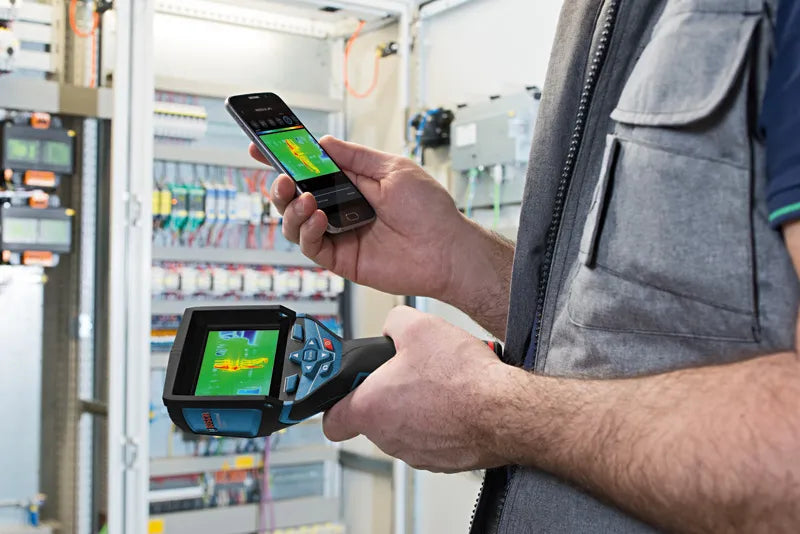

  • Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app

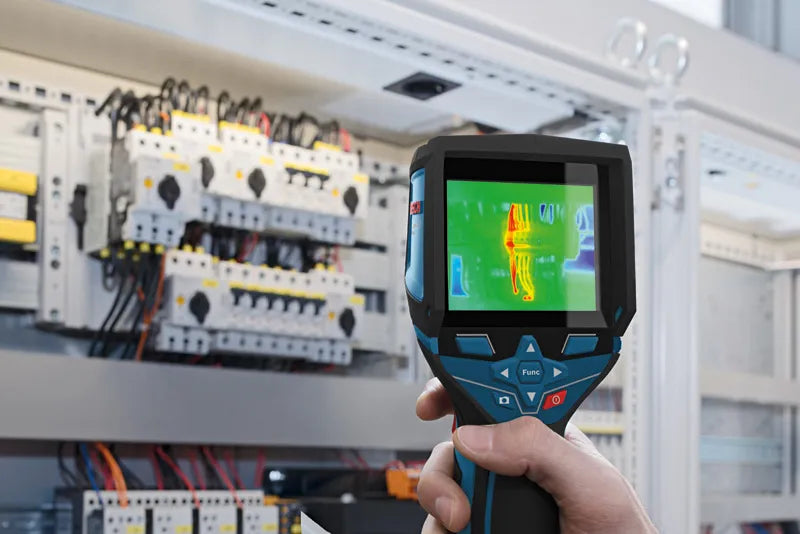

  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Technical data

Additional data

Battery voltage
12.0 V
Measurement range
-10 °C to +400 °C
Measuring accuracy of IR
±3.0 °C
Measuring application
Thermal image
Data transfer
MicroUSB, Wi-Fi
Thermal sensitivity (NETD)
<50 mK
Size of IR sensor
160 Pixel x 120 Pixel
Resolution
0.1 °C
Number of measuring points
19,200
Field of view (FOV)
53° x 43°
Power supply and runtime
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Frame buffer (number of images)
500
Memory type
Internal memory
File format of image
.jpg
Dust and splash protection
IP 53
Weight
0.54 kg
Size of display
3,5"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Focus distance, minimum
0.3 m
