Product information
Product details
Specifications, included items and product information.
Technical data
Additional data
Tripod thread
1/4", 5/8"
Laser diode
500 – 540 nm, < 10 mW
Laser class
2
Working range, value
30 m
Working range with receiver
60 m
Accuracy
± 0.3 mm/m
Self-levelling range
± 3°
Dust and splash protection
IP 54
Power supply
4 x 1.5 V LR6 (AA)
Weight, approx.
0.78 kg
Colour of laser line
green

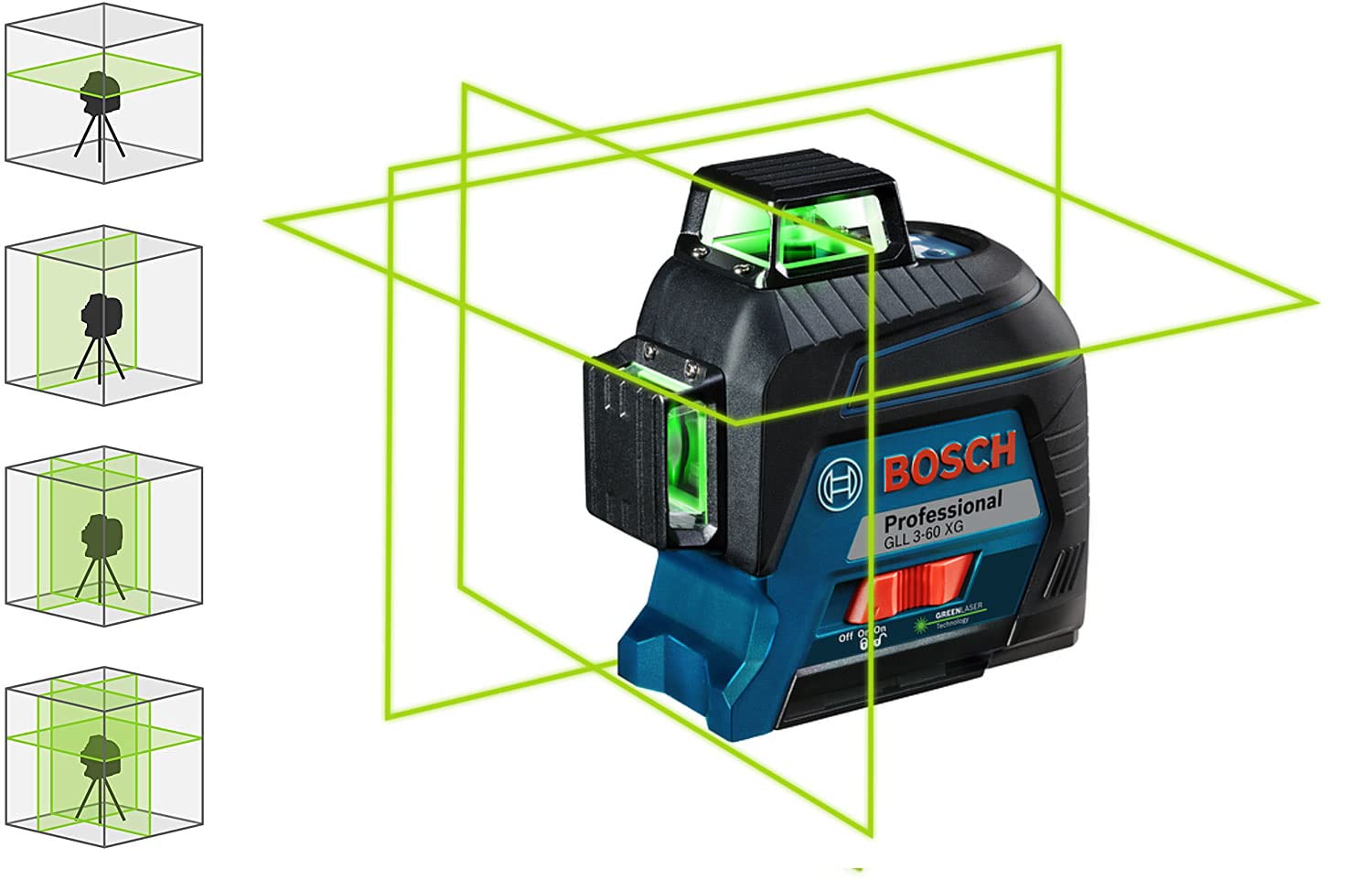

Projection
3 x 360° line
Compatible laser receivers
LR 7
