Compact and flexible for any job in the 12 Volt class
Extremely short body design of 132 mm for drilling, fixing and screw driving in tight spaces

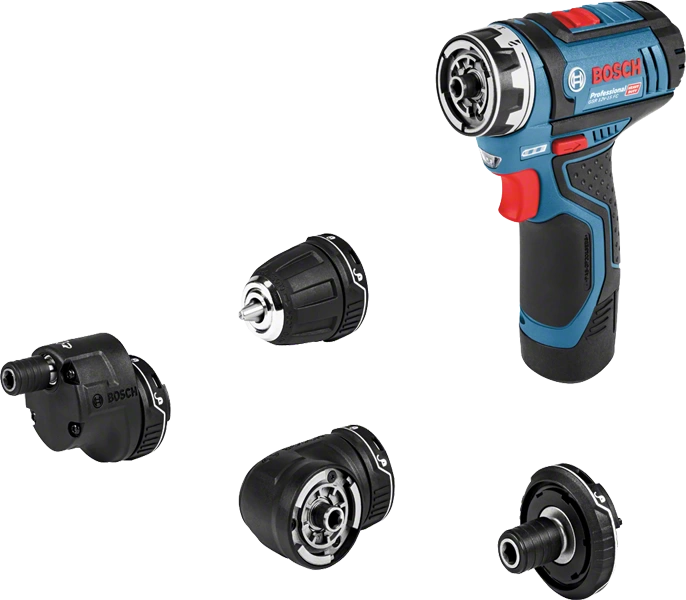

Bosch FlexiClick interface with integrated magnetic bit holder enables attachment of a bit holder, a chuck adapter, an angle adapter and an offset angle adapter
Angle and offset angle adapters can be adjusted and locked in 16 different positions with 360-degree mobility while on the drill
“One-Click” interface ensures a tight fix to the machine at a glance
TECHNICAL DATA
Additional data
Torque (soft/hard/max.)
15/30/- Nm
No-load speed (1st gear / 2nd gear)
0 – 400 / 0 – 1,300 rpm
Weight excl. battery
0.6 kg
Battery voltage
12.0 V
Battery type
Lithium-ion
Chuck capacity, min./max.
1 / 10 mm
Torque settings
20+1
Drilling diameter
Max. drilling diameter in wood
19 mm
Max. drilling diameter in steel
10 mm
Screw diameter
Max. screw diameter
7 mm
Total vibration values (Drilling in metal)
Vibration emission value ah
1.5 m/s²
Uncertainty K
2.5 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah
1.5 m/s²
Uncertainty K
2.5 m/s²
Noise/vibration information
Sound pressure level
79 dB(A)
Sound power level
79 dB(A)
Uncertainty K
3 dB
Drilling in metal
Vibration emission value ah
1.5 m/s²
Uncertainty K
2.5 m/s²
Screwdriving
Vibration emission value ah
1.5 m/s²
Uncertainty K
2.5 m/s²
This product includes
2 x battery GBA 12V 2.0Ah 1 600 A00 1BT
Quick charger GAL 12V-40 Professional 1 600 A01 9R5
